Secure PowerShell in your EUC Environment

This post will outline the ways in which you can secure PowerShell in your EUC environment.

Overview

PowerShell is no doubt one of the most prolific tools used in End User Computing (EUC) for administering your estate.

This is a good thing and often makes thing a lot easier for us as administrators, however, it is also one of the most used tools for black hat teams to attack your estate.

The Trickbot malware that targets bank customers. Password harvesters like Mimikatz. “Fileless malware” attacks. All three are popular hacking tools and techniques, but they’re unconnected except for one trait: They all rely in part on manipulating a Windows management tool known as PowerShell to carry out their attacks.

wired.com – “Microsoft PowerShell is a hot hacking tool” So, how to we protect ourselves against this and still enable us to do our jobs in a secure and effective manner.

Having been knee-deep in an “ethical” hack of an EUC platform for the past 6 months and also having listened to some of Partick Coble’s presentations to say this is a topic that interests me is an understatement.

The remainder of this article will provide you the steps you need to take to secure your PowerShell environment within your EUC estate whilst still leave it usable for your Administrators.

This is ONLY THE START! I will explain the basics of locking down your PowerShell environment and whilst this is a very good starting point there are so many techniques that you may use to achieve even more security. I did find that for the most part this worked for me.

Also, this is not just specific to a Citrix Environment. These principles can be applied to Citrix, Microsoft, VMware or indeed ANY of the vendors that provide Virtual Apps and Desktops to your users.

Patch and Upgrade

First thing you will need to do is Patch and Upgrade your operating systems. Now, you should be doing this anyway as a standard but if you are not at least upgrade your PowerShell platform to version 5.1.

2 of the reasons to do this are:

  • Enhancements in PowerShell Logging (Version 2 has none)
  • Language Mode Enhancements

I will explain about these further down in the article, but in essence, upgrade PowerShell to v5.1, it is a must!

There are some prerequisites to upgrading, so you should take these into account before you start your upgrade, also upgrade everything in your stack (workers, infrastructure, jump boxes)

  • .NET Framework 4.5.2 installed, not required for the installation just to enable all the features of v5.1
  • Windows 7 or Server 2008R2 machines with PowerShell v3 installed, you must either save the value of PSModulePath or first upgrade to v4 first
  • Reboot required for upgrade

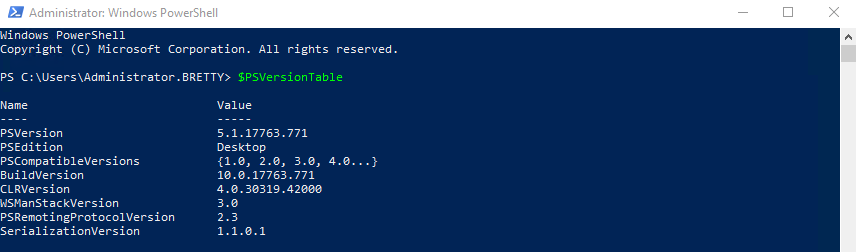

So, now you are up to PowerShell v5.1 lets just check that. You can do this by logging onto any of your servers and running the following command (in PowerShell of course)

$PSVersionTable

So now you have everything up to v5.1 lets move on with securing PowerShell by first disabling PowerShell Version 2.

Disable PowerShell v2

As I mentioned earlier, PowerShell v2 has no logging. This means that anyone who gains access to your platform can do pretty much what they want with PowerShell and leave no trace, not something you want. Fortunately Microsoft have made it pretty easy to disable this once you are on v5.1.

If you want to test prior to see is version 2 is enabled type in the following 2 commands:

PowerShell -Version 2
$PSVersionTable

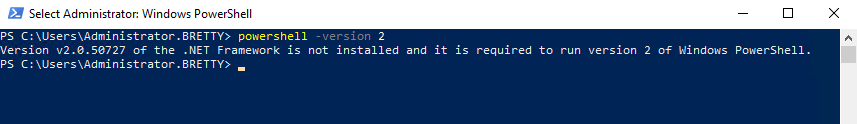

Server 2016 may not have the .Net versions installed, so you may not be able to get into v2 already – disable it anyway just in case someone installs the older .Net version.

In order to disable version 2 just use the below PowerShell script then try and execute the above 2 commands again, you should be prevented from accessing version 2.

# Determine where to do the logging
$log = "C:\Windows\Temp\disable_posh_legacy.log"

# Start the transcript for the install
Start-Transcript $Log

# Disable Legacy Powershell Versions
try
{
    Write-Verbose "Disabling Powershell v2" -Verbose
    Disable-WindowsOptionalFeature -Online -FeatureName microsoftwindowspowershellv2
    Write-Verbose "Powershell v2 Disabled" -Verbose
}
catch
{
    Write-Verbose "There was a problem disabling Powershell v2 - Please check the logs for more information" -Verbose
}

# Stop Logging
Write-Verbose "Stop logging" -Verbose
Stop-Transcript

Now that you have disabled v2 lets move on and look at constrained language mode.

Constrained Language Mode

What is “Constrained Language Mode?”

PowerShell Constrained Language is a language mode of PowerShell designed to support day-to-day administrative tasks, yet restrict access to sensitive language elements that can be used to invoke arbitrary Windows APIs.

Essentially is locks down the commands you can run within PowerShell and locks out many of the commands that you can use to undertake malicious activity.

Enabling this will break certain applications you run so check before implementing this across the board. I do not have this enabled on my master images as it breaks the Base Image Scripting Framework. However, I do have it enabled on the user VDA’s.

To check what language mode you are using enter the following command

$ExecutionContext.SessionState.LanguageMode

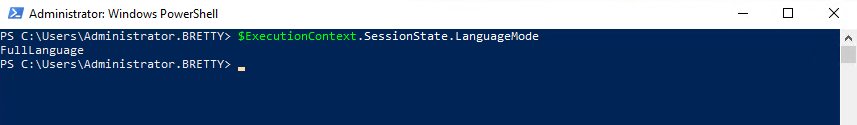

You can see I am running in FullLanguage meaning I can pretty much do anything. I can change this in session my typing the following

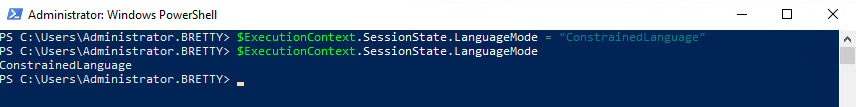

$ExecutionContext.SessionState.LanguageMode = "ConstrainedLanguage"
$ExecutionContext.SessionState.LanguageMode

As you can see, this works, but the user can just start a new session and get back to FullLanguage mode. To get round this I put a SYSTEM environment variable in to lock the system to ConstrainedMode. Below is a PowerShell script you can use to achieve this

[Environment]::SetEnvironmentVariable('__PSLockdownPolicy', 4, 'Machine')

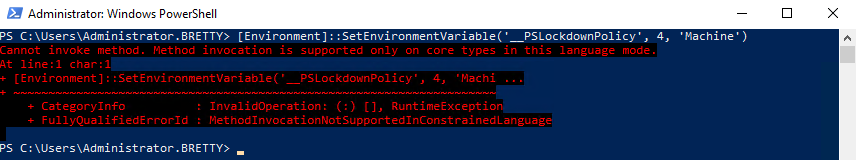

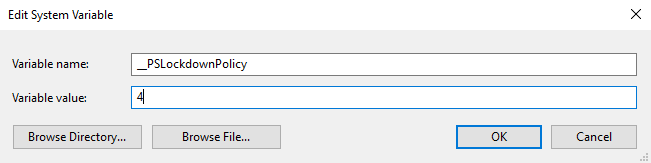

You will see this will add a system variable to enable Constrained Language Mode. To test this has worked you can rerun the same command in a new PowerShell window, and you will see you are locked into constrained mode.

Secure Execution Rights

We now need to control who can execute PowerShell in your environment. There are many ways of doing this but in this case I will use AppLocker to achieve this as it’s built in and freely available.

This does apply most restrictive rights so what I do (and this is by no means the only way) is created a group that ALL standard users of my platform go in. In this case its a group called Standard_Virtualization_User. This is a Change Auditor locked group, so no users can remove themselves from it etc.

Next I will create a Group Policy Object to restrict access to PowerShell based on this group.

When you create the new policy for AppLocker make sure you first create the default rules. Here is a link to show you how to create these default rules. This is designed to allow Windows to operate normally.

https://docs.microsoft.com/en-us/windows/security/threat-protection/windows-defender-application-control/applocker/create-applocker-default-rules

Create a new Group Policy and go to Computer Configuration -> Policies -> Windows Settings -> Security Settings -> Application Control Policies -> AppLocker -> Executable Rules

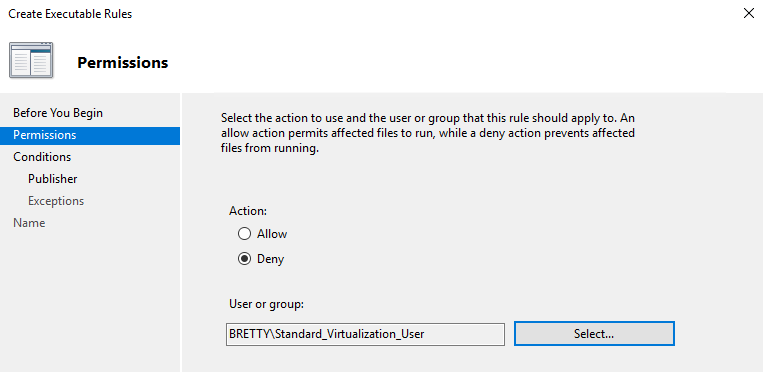

Right click and create a new rule, click next then select Deny and select your new group.

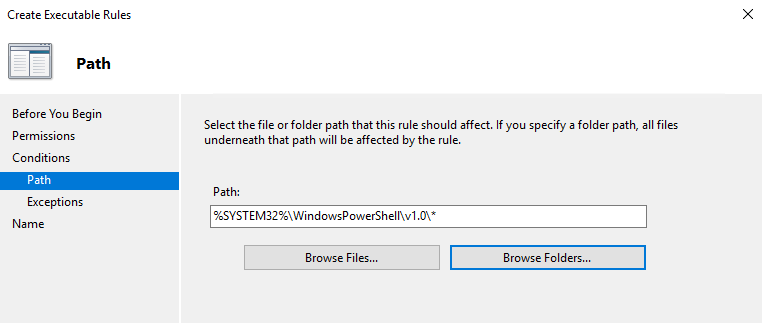

Click next then select Path

Click next and select Browse Folders and select the PowerShell folder

Click Next, Next and Create

This will create the rule for you. Happy days, PowerShell cannot be run now, but wait! What if I copy the powershell.exe file out of that directory and run it from somewhere else.

Right click and create another rule, click Next, select Deny and select the same group as before

Click next and select File Hash

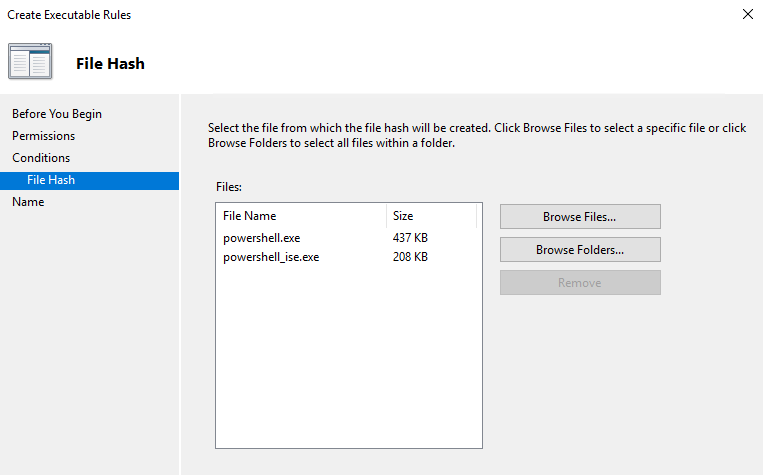

Click Next and Browse to the PowerShell directory, select powershell.exe and powershell_ise.exe

The file has WILL change when these components are patched so make sure you update the rules

Click next and Create and you will see the rules created

So, let’s test this out. Log into a Server and run

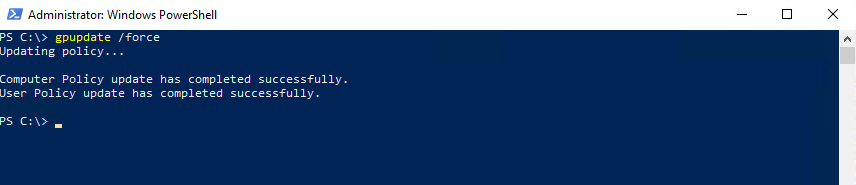

gpupdate /force

This should pull down the new policy, you can check this by running gpedit.msc and checking the AppLocker Rules, you should see the new rules in there.

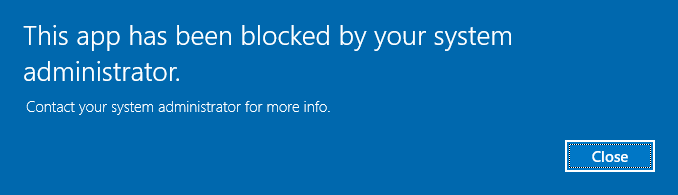

If you now log in as your standard user and try to run PowerShell or the ISE you will get access denied error

This can also be delivered via Citrix Workspace Environment Manager and there are some special considerations around that, but I will cover those in a different post.

Set Script Execution Policies

What is “Script Execution Policies?”

PowerShell’s execution policy is a safety feature that controls the conditions under which PowerShell loads configuration files and runs scripts. This feature helps prevent the execution of malicious scripts.

I want to lock this down globally across all my Servers / Desktops that my users can connect to, so I will create a new Group Policy and assign it to the relevant OU.

Go to Computer Configuration -> Policies -> Administrative Templates -> Windows Components -> Windows PowerShell

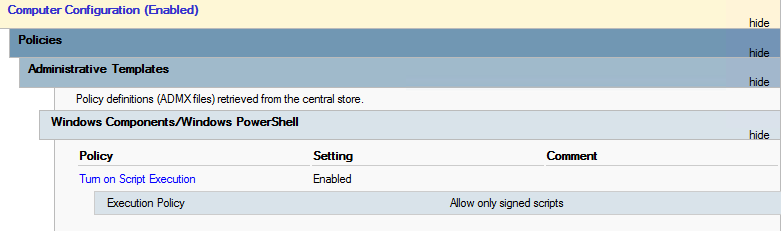

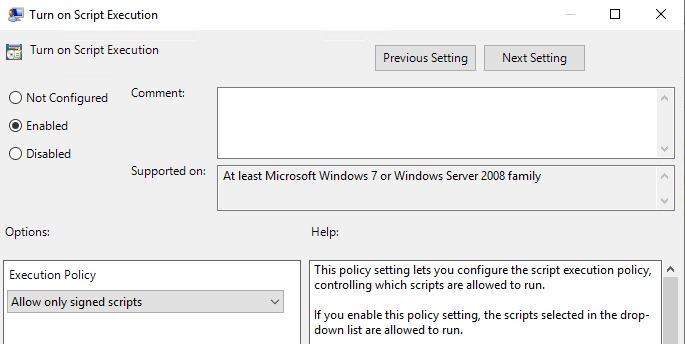

Then select the option for Turn on Script Execution and select the policy that you wish to apply here, I chose Allow only signed scripts

Click on Apply and OK – that’s it – you have set up the Script Execution Policy for your workers.

Enable PowerShell Logging

So, by the controls you have put in place already “hopefully” your standard users will not be able to get into PowerShell to execute scripts, BUT, if they do – then what.

Here is where we are going to enable PowerShell logging so that we can track what’s happening on your estate and if needs be dig into the output and find out what’s gone wrong!

Open up the same policy that you enabled the Execution Policy for and navigate to the same location.

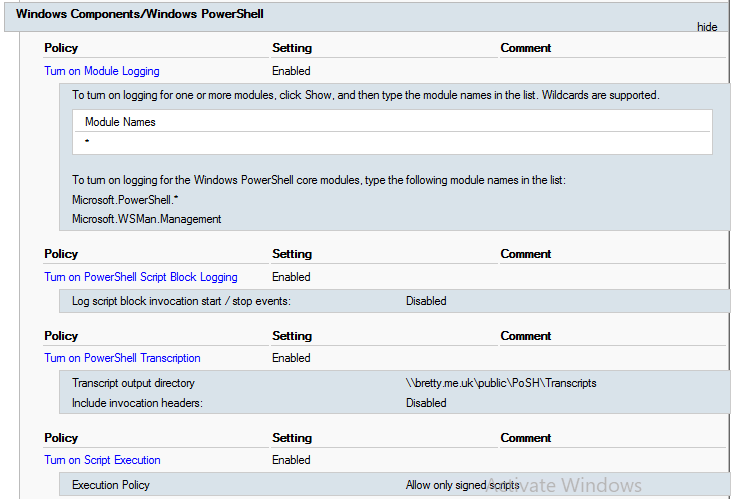

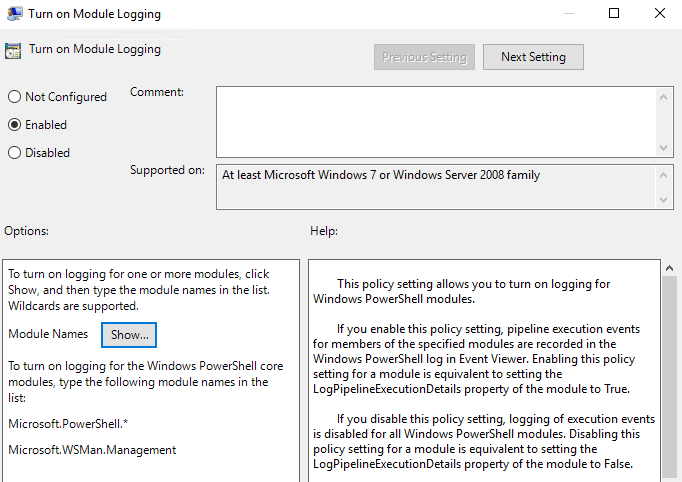

Select the option to Turn on Module Logging and Enable it.

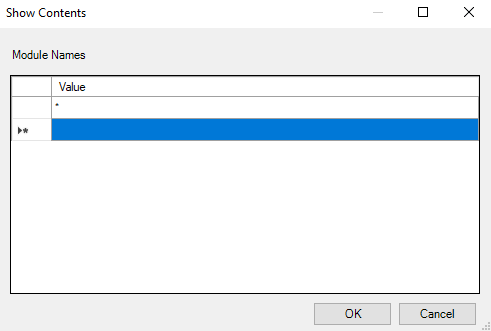

The click the Show button to select the modules and put a * in there to log for everything

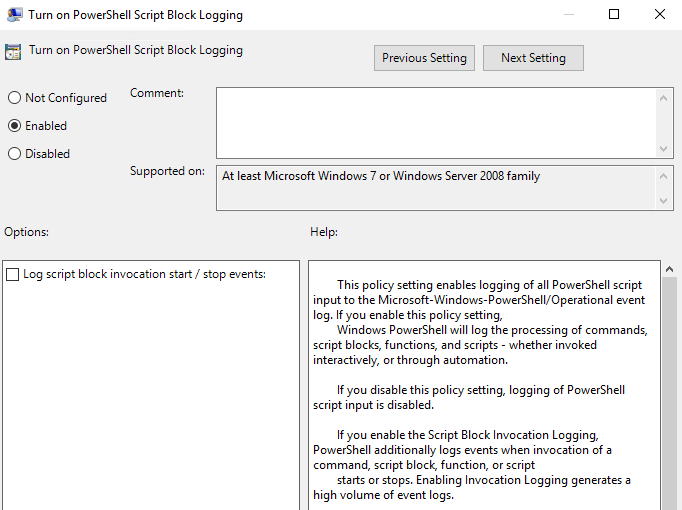

Click “Next Setting” and Enable Turn on PowerShell Script Block Logging and dont select the invocation start / stop option

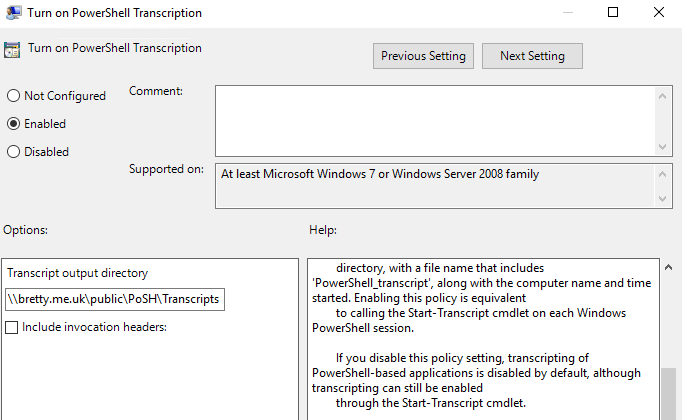

Click “Next Setting” twice and Enable Turn on PowerShell Transcription and select an output Write Only network share you create to save the PowerShell Transcripts to

Click Apply and OK and your platform is now set up to Log PowerShell actions undertaken across the platform.

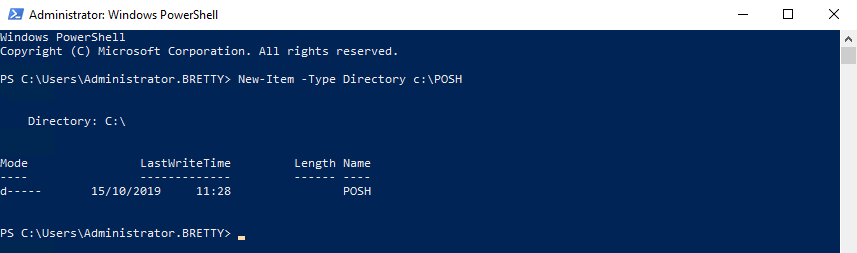

With this enabled we can now test that it’s all working as expected. Log into a server and refresh the group policy. The open PowerShell and create a New Directory Locally

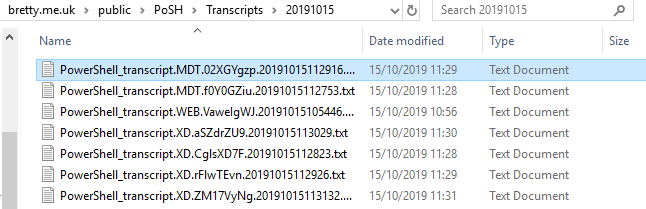

Now, if you look in the Transcripts Location on your network you will see the transcript for the session you have just completed, here you will find detailed information about what’s happening out there with PowerShell

You can also check in the Applications and Services -> Windows PowerShell event log and see all the events logged for the PowerShell Executed on the server. If you dig through these you will be able to find the “Pipeline Execution” event for the command you just issued

Excellent – we have it all logging to a network file share and into the local event log. But what about if you run non-persistent workloads and do not redirect the event logs to a persistent drive (why would you not!).

Or, how are you realistically going to trawl through 100’s of servers event logs in an attack situation to find out what’s happening.

Capture PowerShell Activity Centrally

We need to be able to capture all the event logs in a central location so that we can analyze them in the event that we have to investigate an attack or breach.

I am going to use event log forwarding to do this. Now – there are 2 ways in which you can forward event logs

  • Collector Initiated
  • Source Initiated

Source Initiated is where the endpoint (sever) pushed the event logs up to a central event log collector. This is great in large environments as it reduces the load on the collector.

Collector initiated is where the event log collector pulls the logs into the central location, this is the method I will be using here to demonstrate centralized logging but feel free to implement either in your environment

First lets designate a collector, in this lab it will be my MDT Server “MDT”

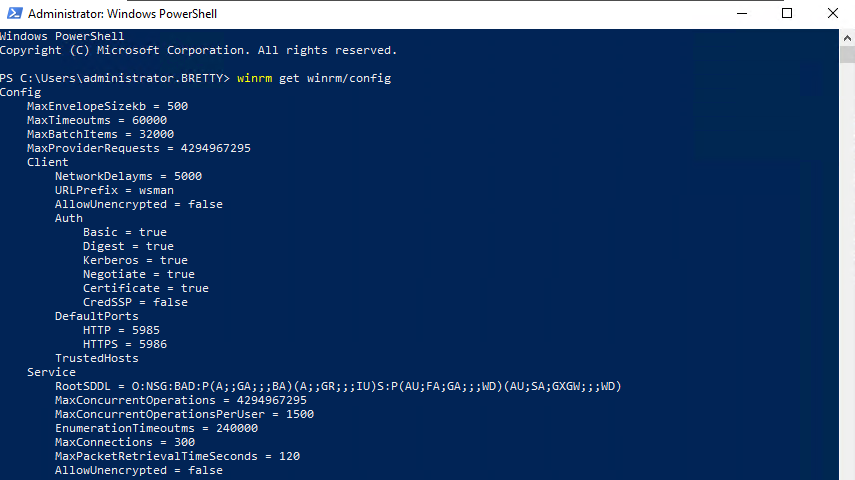

Log into a server that you want to implement central logging and check that WinRM is enabled by typing the following

winrm get winrm/config

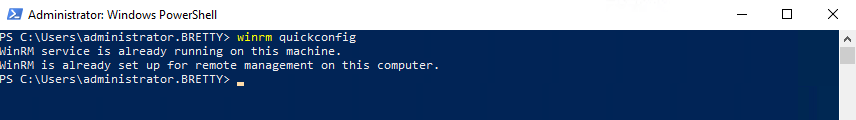

If it is not enabled then type the following and select “yes” to the prompts

winrm quickconfig

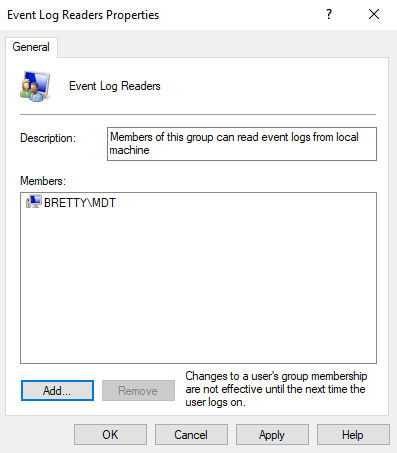

Next you need to grant the collector access to the local event log for the target, you can do this by running the following PowerShell or by manually adding the computer account

Add-ADGroupMember –identity 'Event Log Readers' –member collector_name$

Next we need to head over to the Collector and run the same commands to set up WinRM

winrm quickconfig

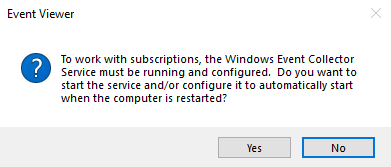

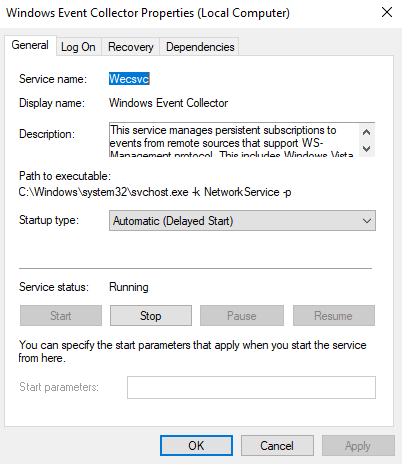

Then open up Event Viewer and select the SubScriptions Tab at the bottom, this will prompt you to reconfigure the Windows Event Collector service – select Yes here.

This will set the service to “Running” and also “Automatic (Delayed Start)”

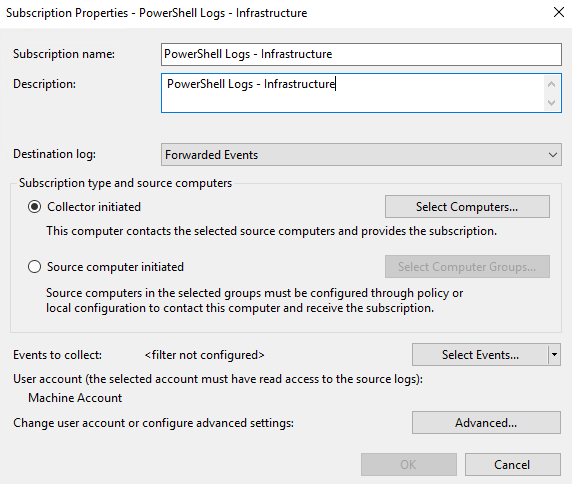

Next right click the subscriptions and select New Subscription. Give it a Name and Description plus select the Log you want all the forwarded events to appear

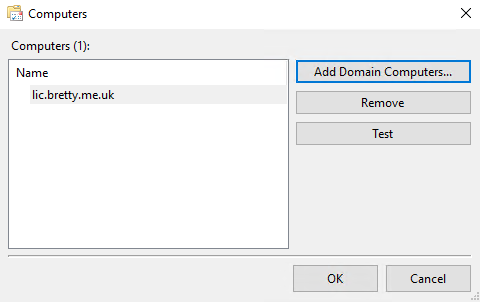

Next click the Select Computers icon next to “Collector Initiated” and add the computers you want to collect the logs for

Click on Test to ensure the collector and target can communicate

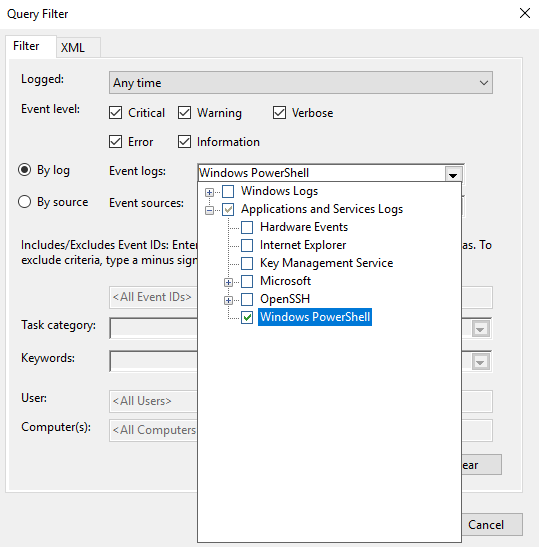

Click OK then click on the icon to Select the Events you want to collect. Select all the event types and PowerShell as the Log

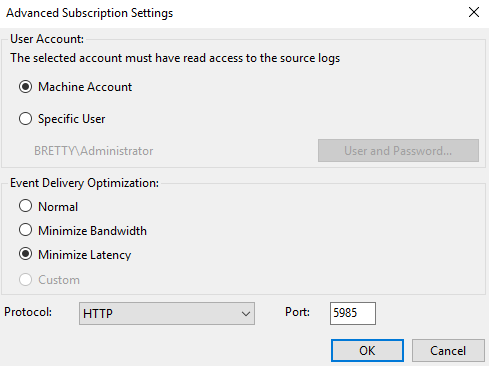

Finally, under Advanced Select the Machine Account and Minimize Latency plus the protocol you want to use

Click on OK and the new Subscription will be created for you

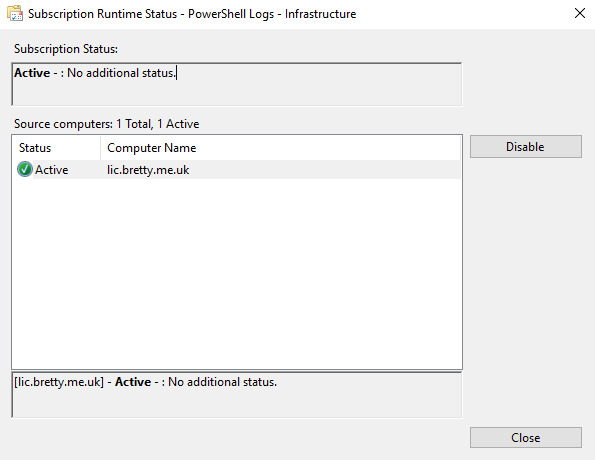

If you right-click on the Subscription and select Runtime Status you should see that the subscription is up and running and Active

That’s it – all the PowerShell events from the source computer will be forwarded to your new Event Log Collector. Go Ahead and create a new Directory Using PowerShell on the monitored Server

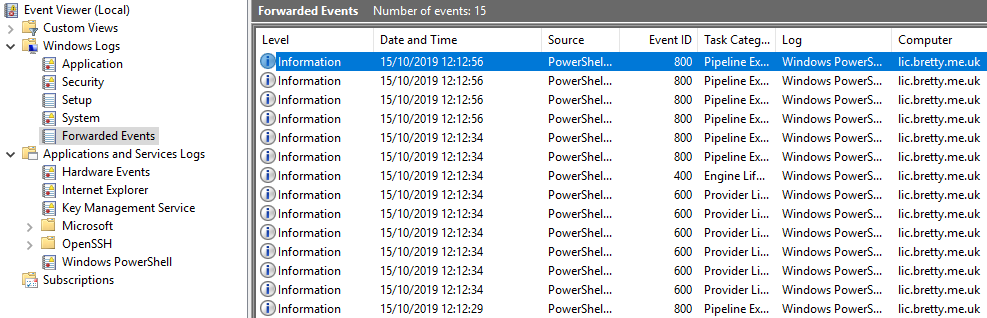

If you then check the Forwarded Events log on your collector you will see all the PowerShell Logging being forwarded

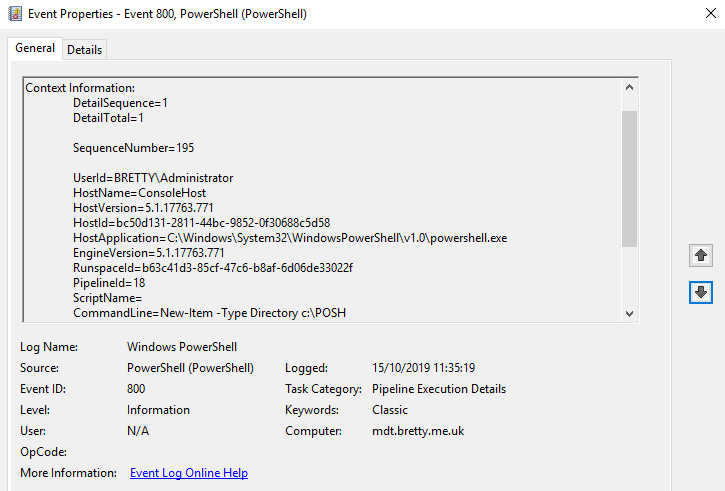

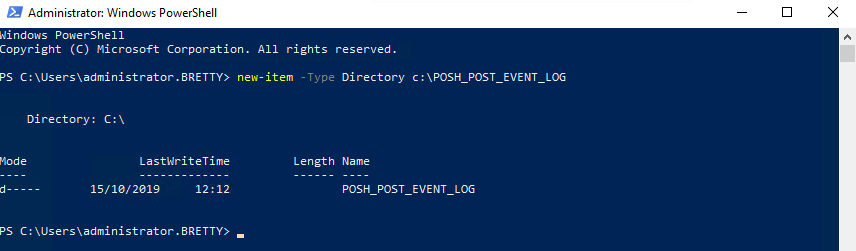

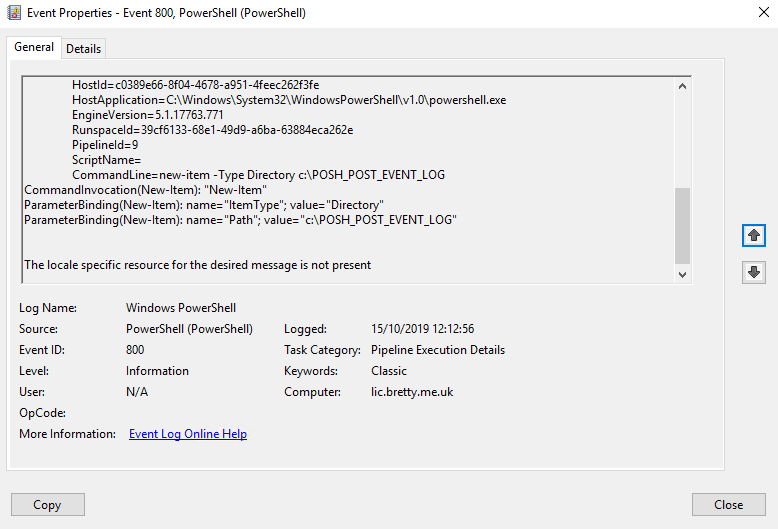

If you dig into these events you should be able to get the Pipeline Execution items for the tasks run on your platform

With this in place you will be able to use and number of tools to monitor this event log subscription and ensure that you are alerted and can react to anyone using PowerShell in your EUC environment when they should not be.

Hope this helps some of you out in securing PowerShell in your EUC environment

Conclusion

The above is by no means the only way to lock down PowerShell in your EUC environment, but, it will go some way in stopping your users doing stuff they should not. Please test this before implementing into production and if you have any comments, feel free to reach out.
